Inorganic tubes withstand heat to 1800F
-
Available in many high strength shapes
-
Rectangular and oval Mica tubes from Inorganic stock
-
Core insulation for power coils
-

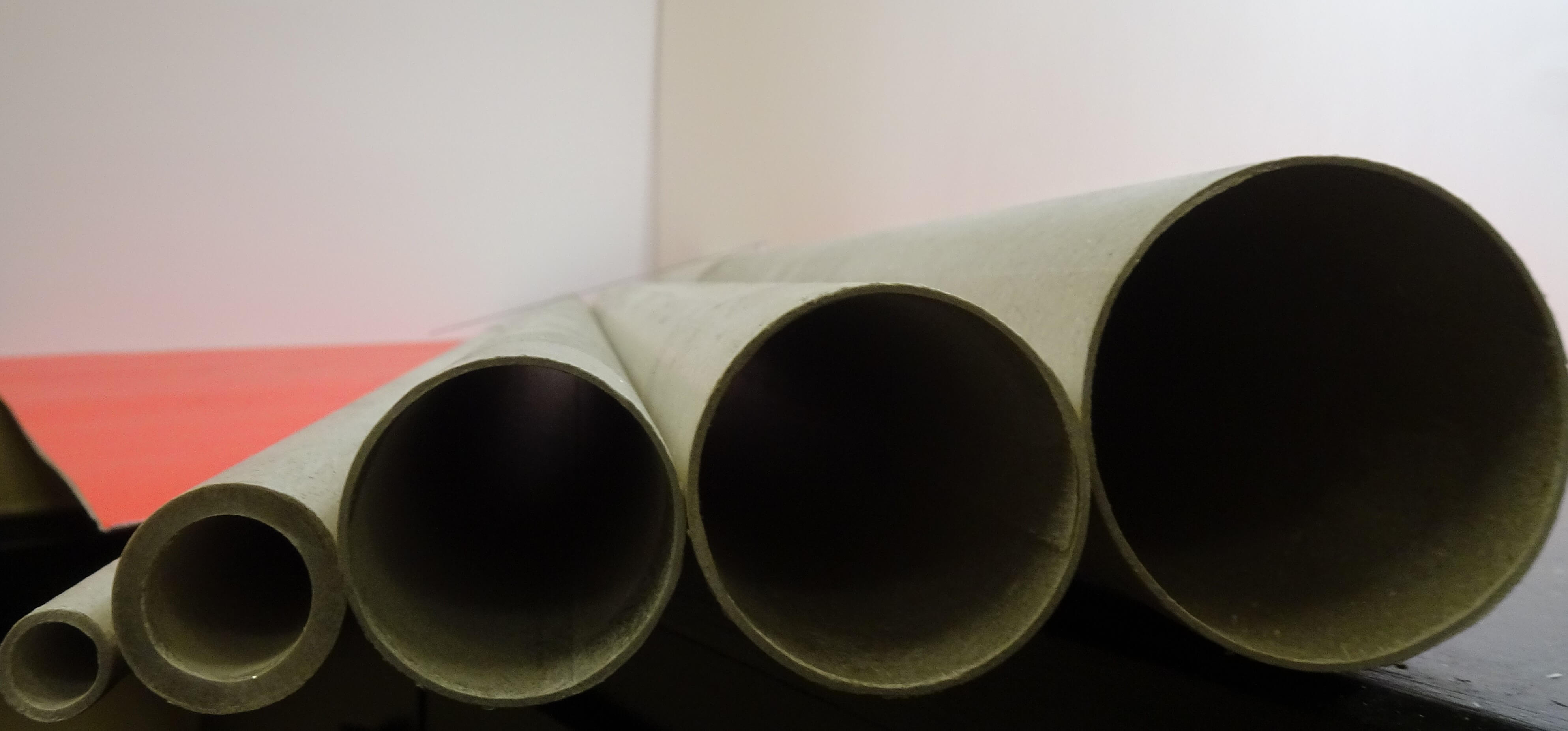

We stock a wide variety of Mica tubes sizes
-
thick walled Mica Tubes
-
Shellac Mica Paper Tubes
Typical Industry Uses:
- Solar
- Wind Powered
- Oil and Gas production and support machinery
- Automotive
- Elect./Hybrid vehicles
- Industrial motors
- Farm and Heavy machinery
- Rail
- Power generation and distribution
Muscovite or Phlogopite Mica paper tubes
Mica Paper Tube
Muscovite or Phlogopite Mica paper tubes bonded with a choice of resins. As a custom tube manufacturer, Asheville Mica Company offers Mica Paper Tubes for rod insulation in grid banks, resistors and other high temperature requirements. Tubes can be furnished in standard length of 36" or cut to a pre-determined length. Special order lengths are available. Round tubes are made to NEMA standards.
Inorganic tubes are made from muscovite mica paper bonded with our proprietory silicate binder and will withstand temperatures of 1800F. These tubes can be cut into bushings for high temperature tubular heater and piece applications.
Rectangular and square configurations can be made from the same inorganic mica paper stock. Oval tubes are also available, as well as diamond shaped. Applications include core insulation for power coils.
Please contact our sales team to discuss your technical needs, pricing and any questions you might have.
Mica Splittings Tubes
Typically Round but available in wide range of other options, the 100% Mica tube offer amazing Electrical Resistance but less resistance to Mechanical abuse then our Kraft Paper covered tubes.Often used for bushing, Coil and Core Insulation, Commutator Sleeves, Grid Rheostat Rods, and High Voltage Terminal Insulation
| Description | NEMA Grade | Percent Mfg Mica | Minimum Wall Thickness | Nominal I.D. in Inches | Avg. Tolerances in Diameters, +/- Inches | Dielectric Strength | |||||
| Wall Thickness up to 1/16" | Wall Thickness 1/16" - 5/32" | Tansverse Min. Avg. Volts/ Mil | |||||||||
| 100% Mica | 101 | 100 | .032" | less Than 1" | 0.005" ID | 0.015" OD | 0.005" ID | 0.020" OD | 300 | 200 | |
| 1-2" | 0.008" ID | 0.015" OD | 0.008" ID | 0.020" OD | 300 | 200 | |||||
| 2-4" | 0.010" ID | 0.015" OD | 0.010" ID | 0.025" OD | 300 | 200 | |||||
| Paper Covered Mfg. Mica | 103 | 80 | .032" | less Than 1" | 0.005" ID | 0.015" OD | 0.005" ID | 0.020" OD | 250 | 170 | |
| 1-2" | 0.008" ID | 0.015" OD | 0.008" ID | 0.020" OD | 250 | 170 | |||||
| 2-4" | 0.010" ID | 0.015" OD | 0.010" ID | 0.025" OD | 250 | 170 |
Options
- Shapes - Hexagonal, Oval, Round, Rectangular, Octagonal, Square
- Binders - Epoxy, Silicone or Shellac
- Inside Diameter - . 125" Min / 25" Max
- Wall Thickness - .015" min / 1.0" Max
- Length - .2" Min / 45" max
Mica Paper Tubes
Mica Paper Tubes are known for extreme uniformity with Silicone and Epoxy as the primary resins used.Often used for bushing, Coil and Core Insulation, Commutator Sleeves, Grid Rheosat Rods, and High Voltage Terminal Insulation
| Description | NEMA Grade | Temp Class | Minimum Wall Thickness | Nominal I.D. in Inches | Avg. Tolerances in Diameters, +/- Inches | Dielectric Strength | |||||
| Wall Thickness up to .032" | Wall Thickness .033" - .250" | Tansverse Min. Avg. Volts/ Mil | |||||||||
| 100% Mica Paper | 101P | 155 | .032" | less Than 1" | 0.005" ID | 0.0075" OD | 0.005" ID | 0.010" OD | 600 | 550 | |
| 1-2" | 0.0075" ID | 0.0075" OD | 0.0075" ID | 0.010" OD | 600 | 550 | |||||
| 2-4" | 0.010" ID | 0.0075" OD | 0.010" ID | 0.010" OD | 600 | 550 | |||||
| 100% Mica Paper | 103P | 200 | .032" | less Than 1" | 0.005" ID | 0.0075" OD | 0.005" ID | 0.010" OD | 600 | 550 | |
| 1-2" | 0.008" ID | 0.0075" OD | 0.0075" ID | 0.010" OD | 600 | 550 | |||||
| 2-4" | 0.010" ID | 0.0075" OD | 0.010" ID | 0.010" OD | 600 | 550 |
Options
- Shapes - Hexagonal, Oval, Round, Rectangular, Octagonal, Square
- Inside Diameter - . 125" Min / 25" Max
- Wall Thickness - .015" min / 1.0" Max
- Length - .2" Min / 45" max
